Working time 22 mins to finish the real vaccume sterilize with 18 liter- highly effective, support the dentists to sterilize the tools by fast time. Internal regulation on spare part position and space, easy for engineer follow the maintaince.

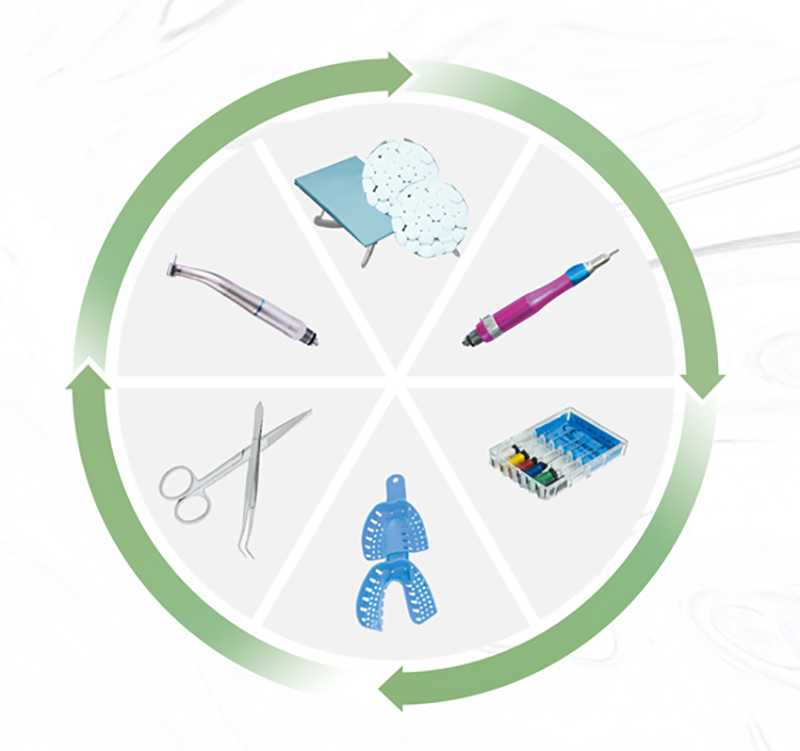

Class B Technology, real vacuum- apply for handpiece, instrument, fabric, cotton and plastic materials ( means it can be sterilized from internal and external, more safety and cover to sterilized all the tools in clinic).

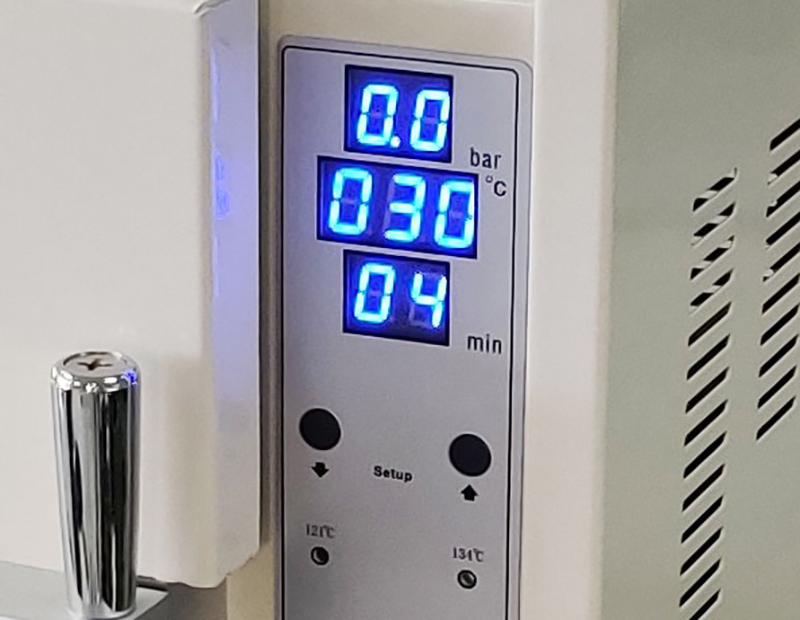

Digital LED display, 121°C/134°C .
Vaccum time can be choose from 1 to 20 min, we suggest to follow the international standard vaccum time: 4 min.

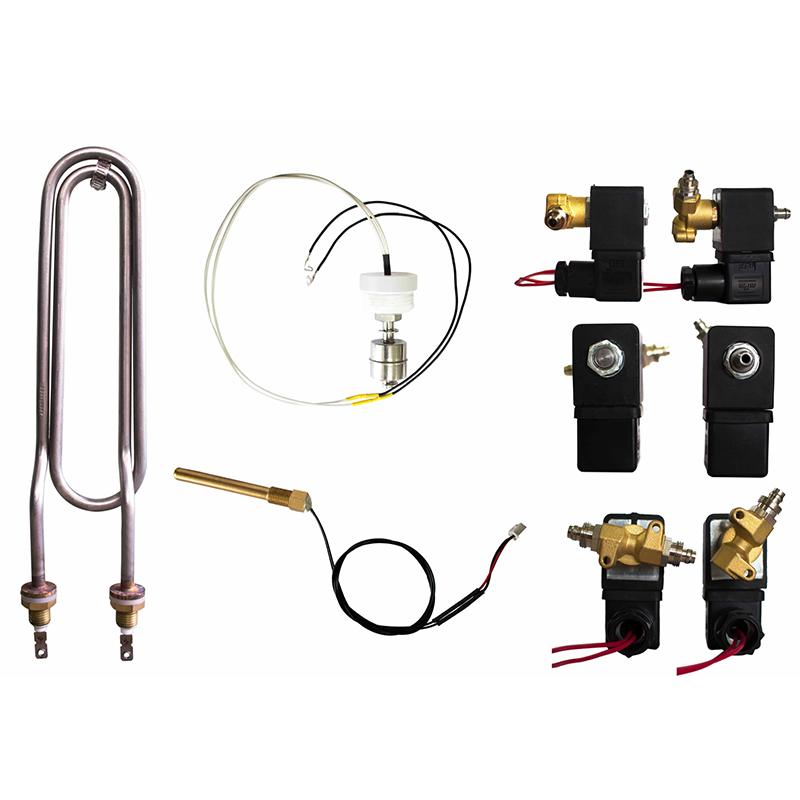

Full set spare part: heater, magnetic valve,steam steel,water level sensor, all spare part are available, to support dealers.

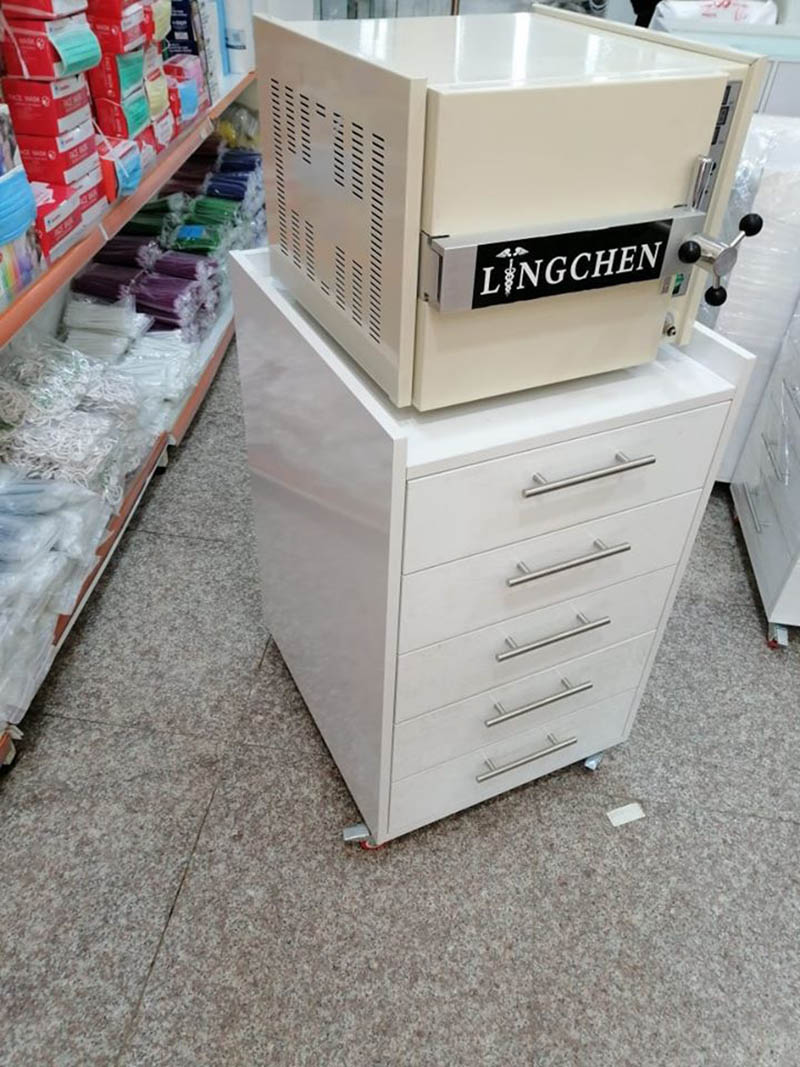

The shape on autoclave in China or abroad, the shape is rectangle, the shortcoming is not easy to find the cabinet to hold it, so most of the dentist put it as horizontal, Lingchen design,it is square design, which follow the international cabinet design.
| Technical parameters | |
| Sterilization | chamber (internal) size (diameter X depth) 247 X 352mm (18L) |
| Voltage | AC220V±22V; 50Hz |
| Power | 1400W |
| Sterilization pressure/ temperature | 1.0- 1.1bar/ 121°, 1.9-2.1bar/ 134° (at standard atmospheric pressure) |
| Ambient temperature | 0- 40° |
| Cartridge fuse | 10A |
| Object | 121° | 134° |
| Time | ||
| Temperature | ||
| Metal-ware | 10mins | 3-5mins |
| Needles for the injector | 3-5mins | |
| Rubber products | 5mins | |
| Cotton yarn | 15mins | 10mins |
