Advantages:
DC battery operation, functional low radiation to protect your patients and extend sensor life;
65KV, clear images;
AA Battery for ease of replacement;
Easy grip handle, small and simple to manipulate.
1. Choose between Child and Adult settings that correspond size and location to exposure time and angle.
2. Reference tooth to exposure time. (Referential value)
|
Tooth position Time(S) |
Back |
Middle |
Front |
|
|
Adult |
Upper Tooth |
1.5 |
1.1 |
0.7 |
|
Lower Tooth |
1.3 |
1 |
0.7 |
|
|
Child |
Upper Tooth |
0.8 |
0.6 |
0.5 |
|
Lower Tooth |
0.6 |
0.5 |
0.4 |
|

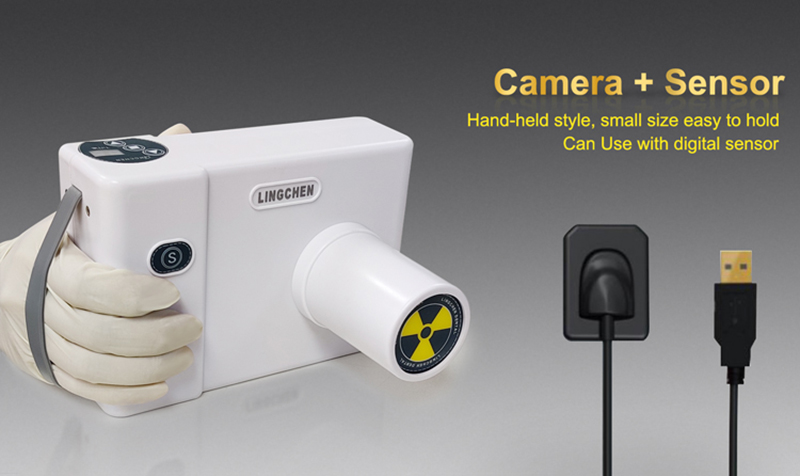

Note: When working with x-ray sensor as opposed to x-ray film decrease exposure by 50%.
|
Upper teeth |
8 7 6 5 4 3 2 1 |
1 2 3 4 5 6 7 8 |
|
Lower teeth |
8 7 6 5 4 3 2 1 |
1 2 3 4 5 6 7 8 |
| supply voltage | 100～240 VAC |
| Frequency | 50-60Hz |
| Power | 100 W |
| Exposure time | 0.2-6 s |
| X- ray tube high voltage | 65KV |
| X- ray tube current | 1mA |
| Filament frequency | 55 KHz |
| Excitation voltage frequency | 35 KHz |
| Leakage radiation | < 10 uGy/h |
| Total filtration | 2.3mmAl. |
| Focus to skin distance | 100mm +10mm |
| Limit diameter | 45mm + 5mm |
| Weight | 1.6kg |
| Volume | 17x13x12 cm |
Warning: Exposure infants and pregnant women should be performed with caution.
