Improve the dentist’s work & increase the reputation of clinic.

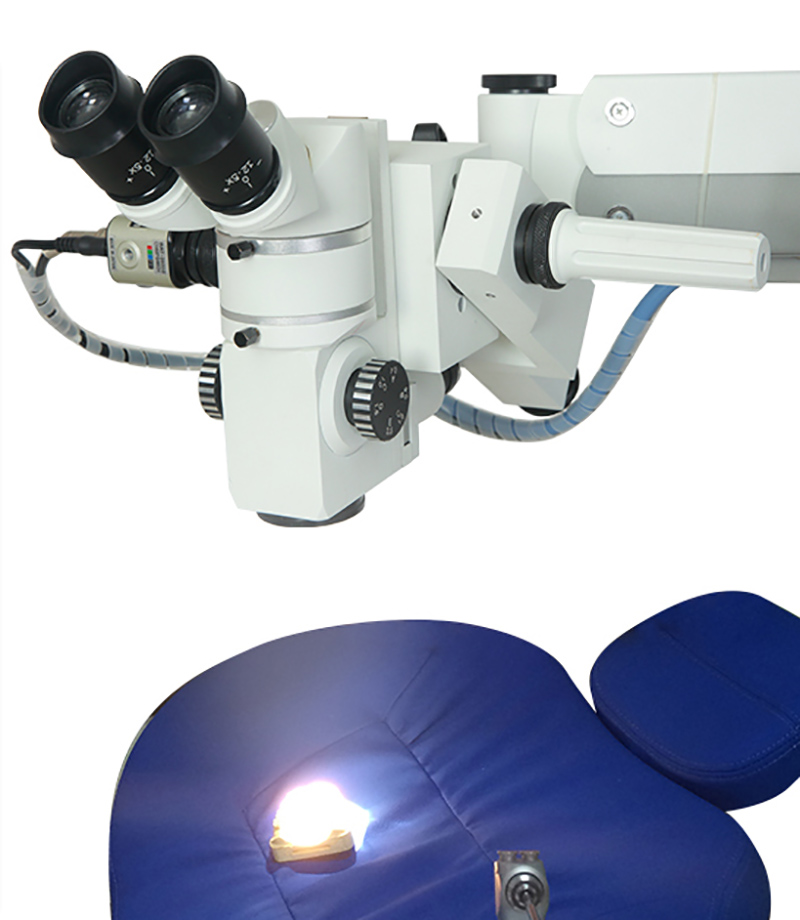

25cm working distance, perfect for dentist's working; with 5 levels changer of magnification, biggest one 20.4X; with fiber optic light.

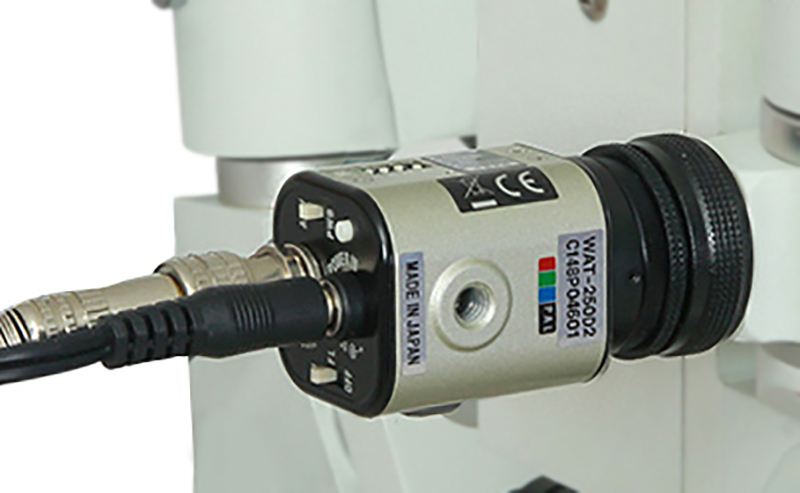

CCD camera, with High-contrast image, great depth of field and excellent stereo effect, supporting to get clear image or video.
Fiber optic light with three level-bright enough, every corner in mouth full of light.

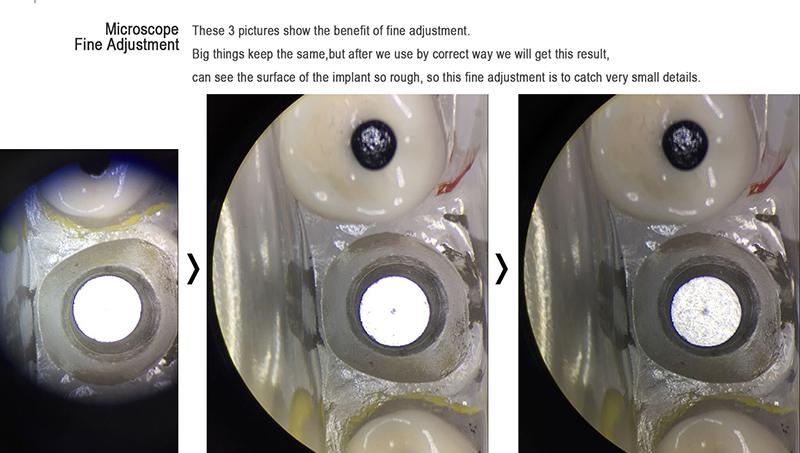

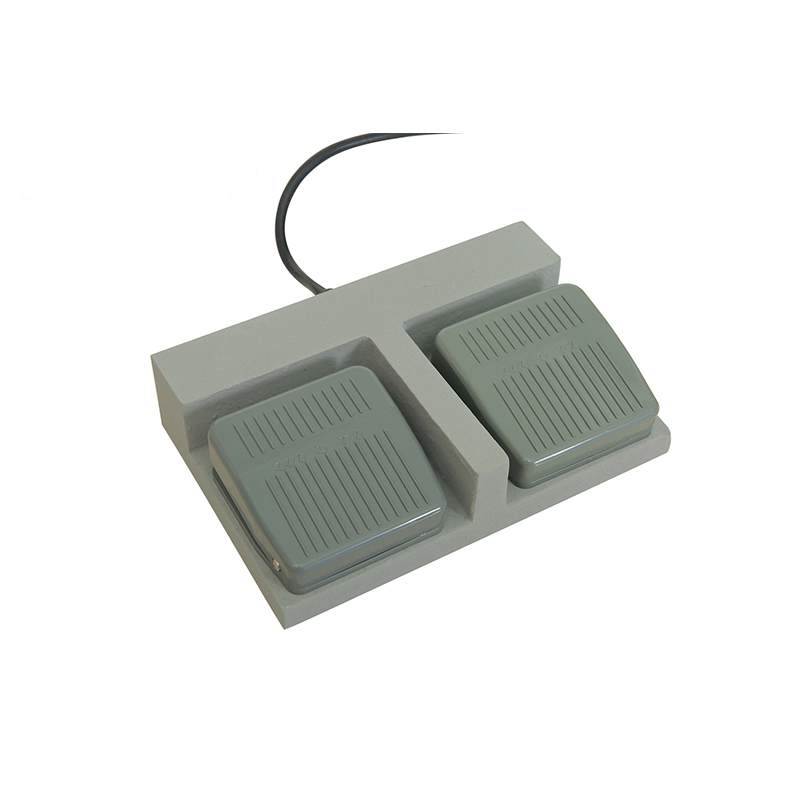

Micro- fine adjusted by electric foot pedal to control up and down, to release the assistant job while release the dentist's hands, and help dentist's reach to final image within seconds.
| Model | Basic specifications | ||||||
| Okyective lens (mm) | |||||||
| Value on wheel | items | 175( with f'=125mm binocular) | 200 | 250 | 300 | 400 | |
| Version III Series | 0.4 | magnification | 3.6 | 4.2 | 3.4 | 2.8 | 2.1 |
| Visual field | 56 | 53 | 66 | 80 | 106 | ||
| 0.6 | magnification | 5.4 | 6.2 | 4.9 | 4.1 | 3.1 | |
| Visual field | 35 | 44 | 53 | 70 | |||
| 1 | magnification | 8.9 | 10.4 | 8.3 | 6.9 | 5.2 | |
| Visual field | 20.7 | 25.8 | 31 | 41.4 | |||
| 1.6 | magnification | 14.2 | 17.4 | 13.9 | 11.6 | 8.7 | |
| Visual field | 12.3 | 15.4 | 18.5 | 24.6 | |||
| 2.5 | magnification | 22.3 | 25.5 | 20.4 | 17 | 12.7 | |
| Visual field | 9 | 8.3 | 10.4 | 12.5 | 16.6 | ||
